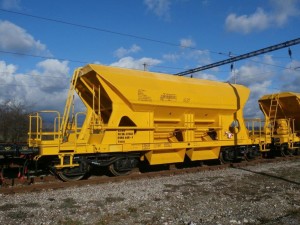

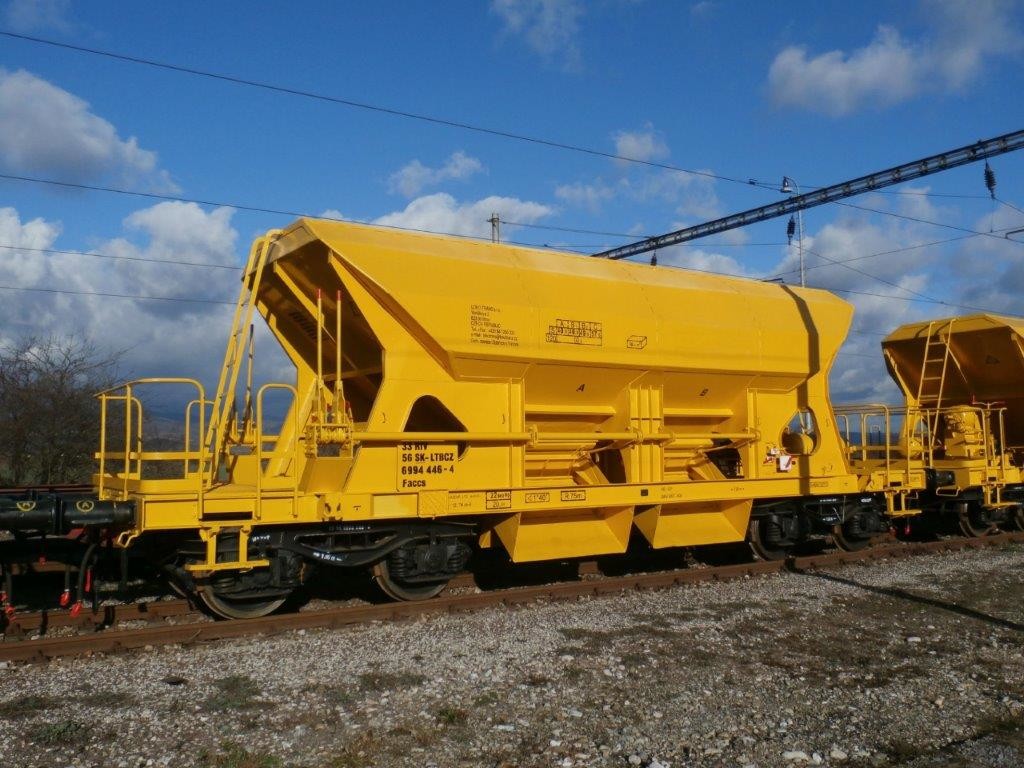

Faccs

Four-axle hopper wagon designed for transport of bulk commodities (especially broken stone, sand, stone, coal, etc.). The wagon is equipped with four mechanically actuated flaps with the possibility of discharge between or outside the track.

Basic technical info

Bogie Y25Cs
Wheel set 4x / Ø 920 mm max.
Buffers 105A / 590 kN
Axle load (t) 20
Overall weight (kg) 22250
Lenght over buffers (mm) 12740
Distance between pivots (mm) 7500
Brake system KE-GP/DK-GP
Max speed loaded / empty 100/120
  A – 40,5
  B1 – 46,5
  B2 – 48,5
  C – 56,5
