Regmms

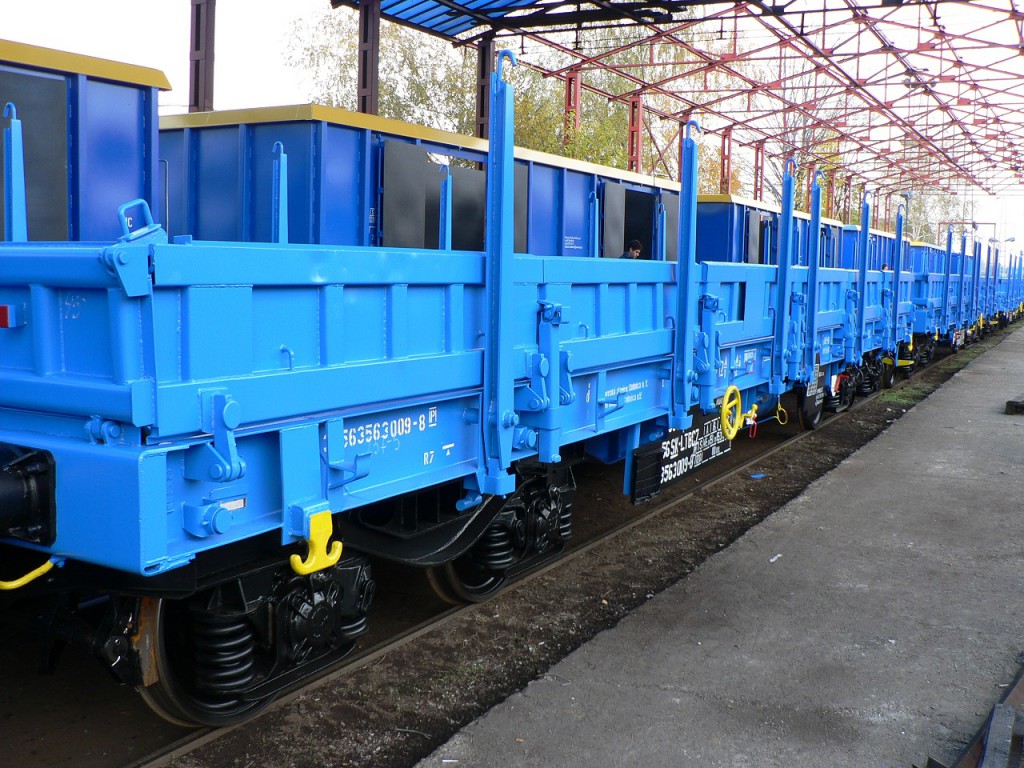

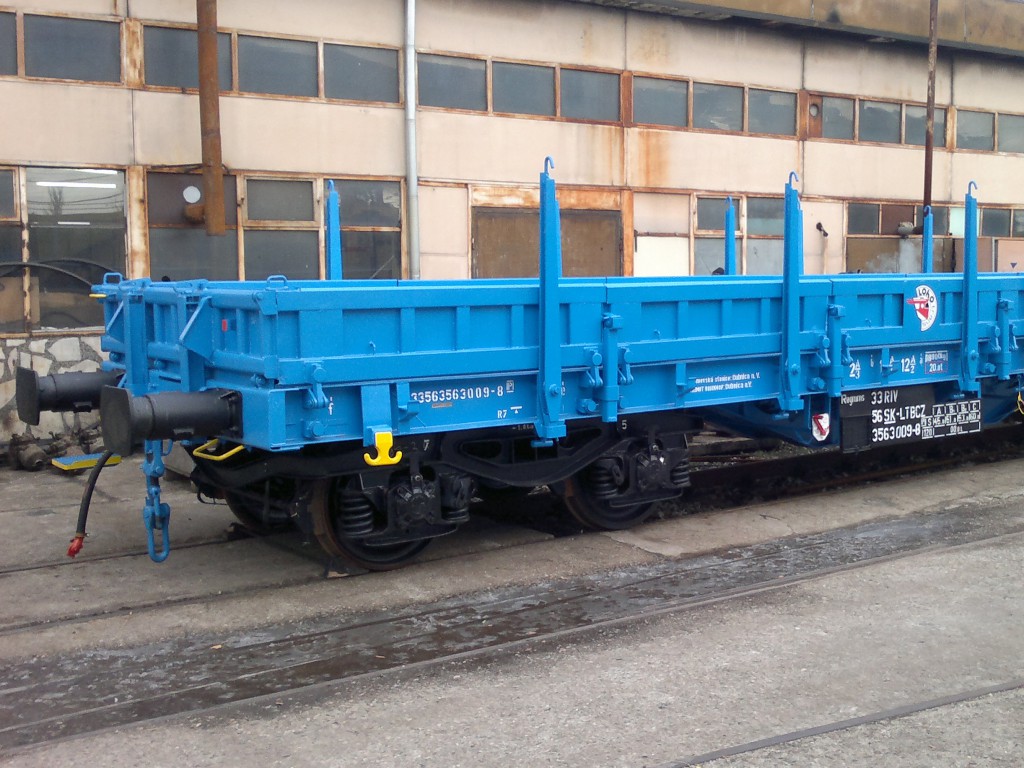

Four-axle flat wagon with sidewalls equipped with container elements and designed for transport of 2 x 20´, 1 x 30´or 1 x 40´ containers or piece goods of shorter lengths that do not require protection from climatic influences during transport.

Basic technical info

Bogie  Y25Cs/Y25Rs
Wheel set 4x / Ø 920 mm max.
Buffers 105A / 590 kN
Axle load (t) 20
Overall weight (kg) 19500

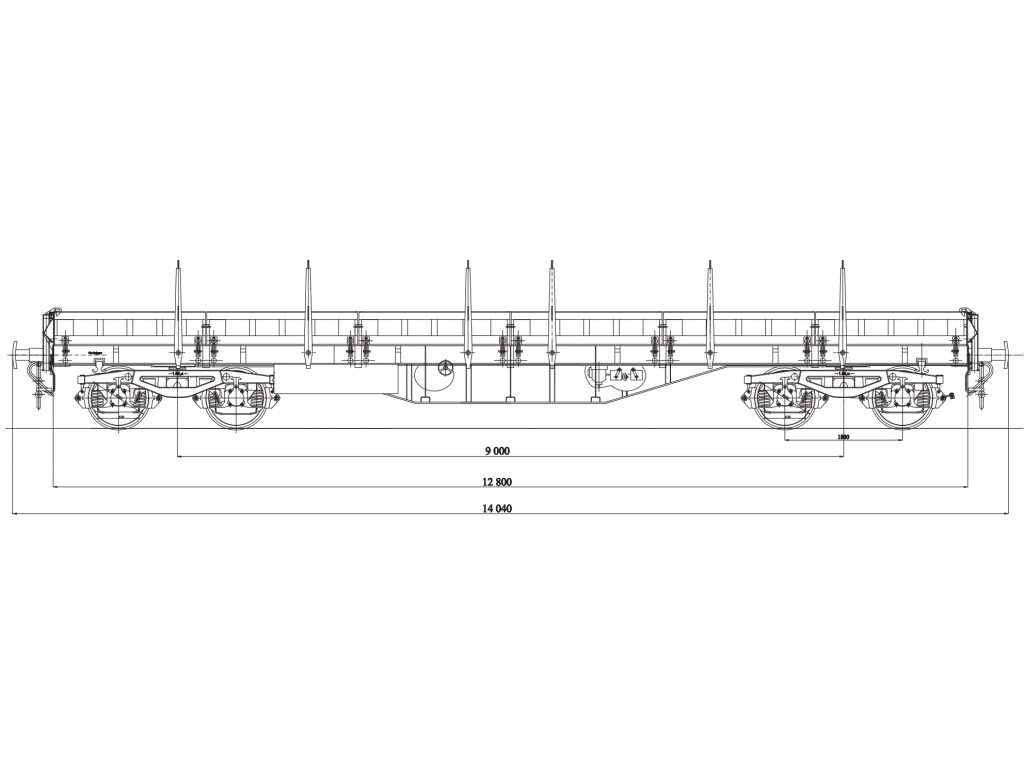

Lenght over buffers (mm) 14040
Distance between pivots (mm) 9000
Brake system KE-GP
Max speed loaded / empty 100/120
  A – 44,5
  B1 – 50,5
  B2 – 52,5
  C – 60,0
